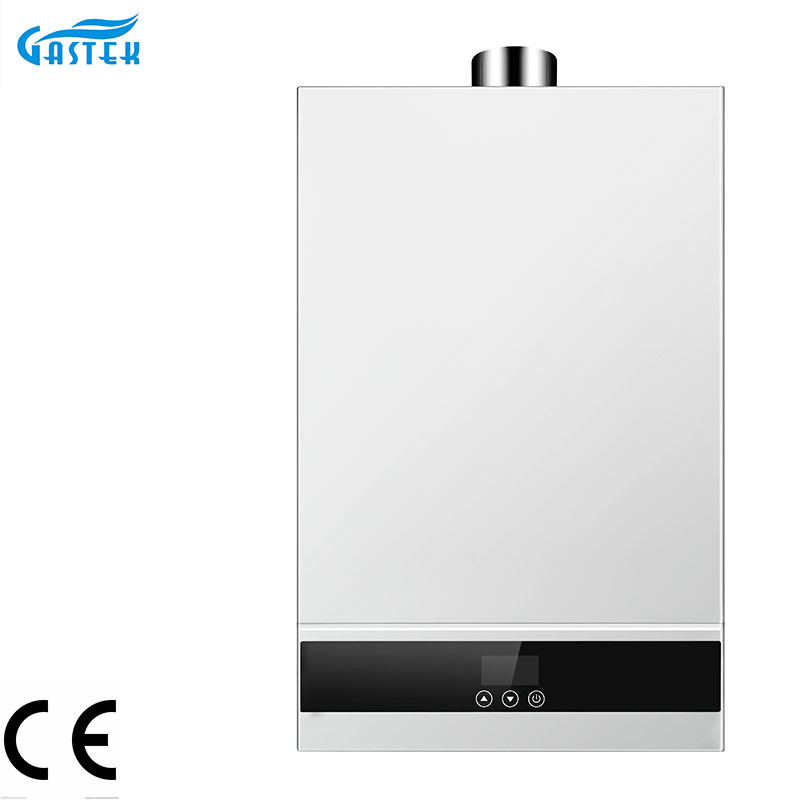

The most important feature of this 12L Tankless Gas Water Heater is to achieve ultra-low NO emissions, which is environmentally friendly. This type of gas geyser can be installed indoor, like bathroom, etc.
12L Tankless Gas Water Heater with Fan-forced type
Certificate number:GB 005774 001
Advantages:
1. CE certification,suitable for European markets.
2. Touch screen with electronic control, easy opeartion.
3. Rich-lean technology burner, excellent in combustion, Class A energy efficiency.
4. Low water pressure start-up as low as 0.01MPa.
5. Hot water fluctuation range: more or less 1 degree.
Features:
Hot water output: 12Litres/min when temperature rising 25 degree.
Heat load: 24kW
Gas type: natural gas and liquefied gas
Suitable for indoor installation: C12/C13
Parameter:
Model |
Rated Heat Input
(kW)
|
Hot Water Supply
(Δt = 25K)
|
Product Size
(mm)
|
Packing Dimension (mm) |
Flue Diameter
(mm)
|
G.W/N.W (kgs) |
Q'20'/40'HQ
(pcs)
|
ND13-ZDP ** | 24 |
12L
(comfort shower)
|
550*350*180 | 660*400*250 | 60/90 | 11.6/10.4 | 360/850 |
