Product Description

Common Gas Boiler Model No

L1PB18

L1PB20

L1PB24

L1PB26

L1PB28

L1PB30

L1PB32

L1PB36

L1PB40

1. Design of European fashion style with large-screen LCD display. It can show the working andcombustion status accurately.

2. Touch keys, easy to operate.

3. Ultra-quiet fans, pumps, combustion system, bathroom, independent heating independent system,more adaptable.

4. Smart computer control and self-inspection system.

5. Multiple automatic protections.

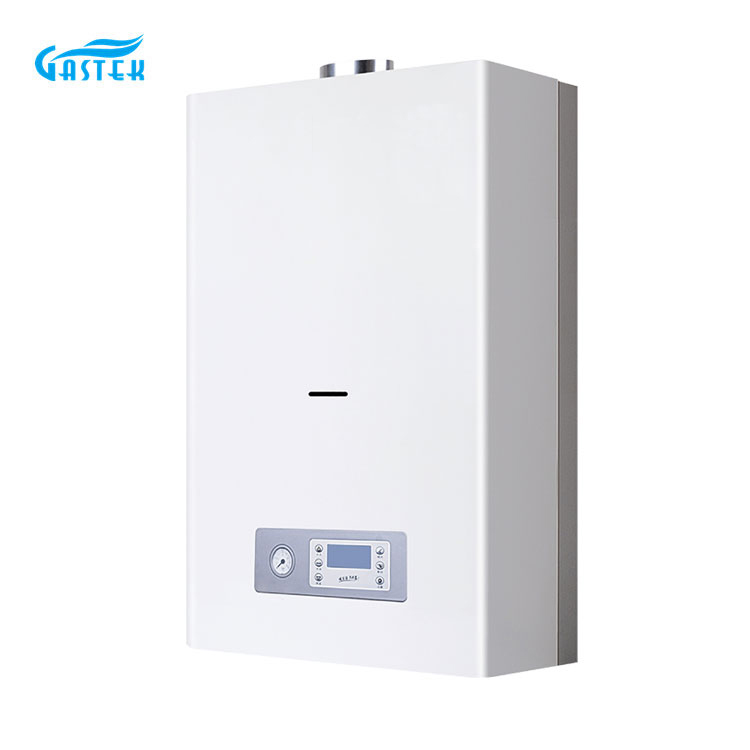

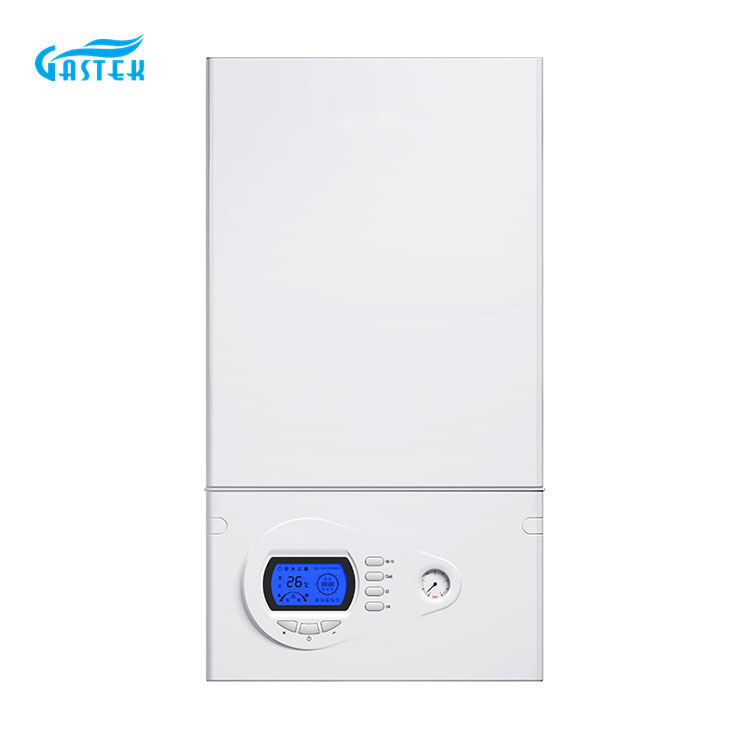

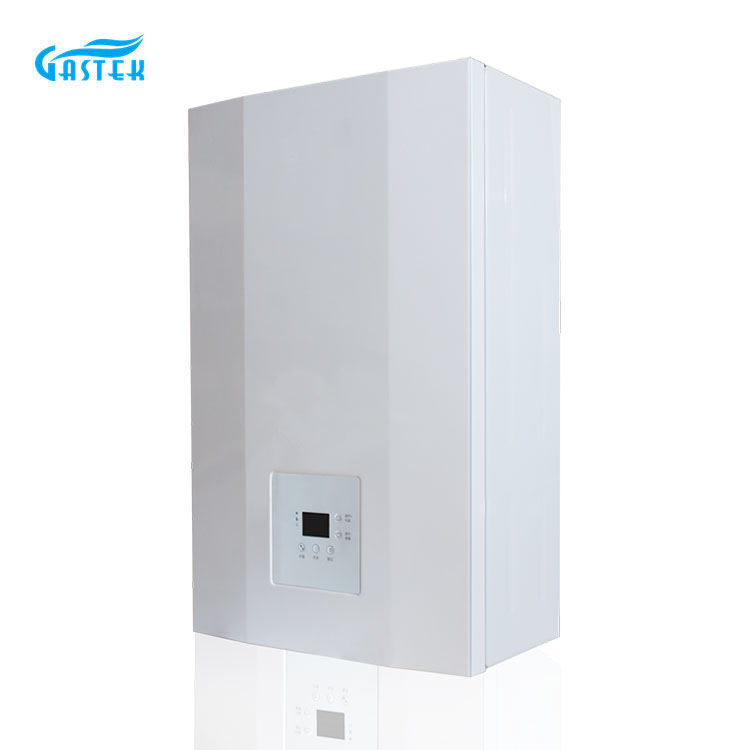

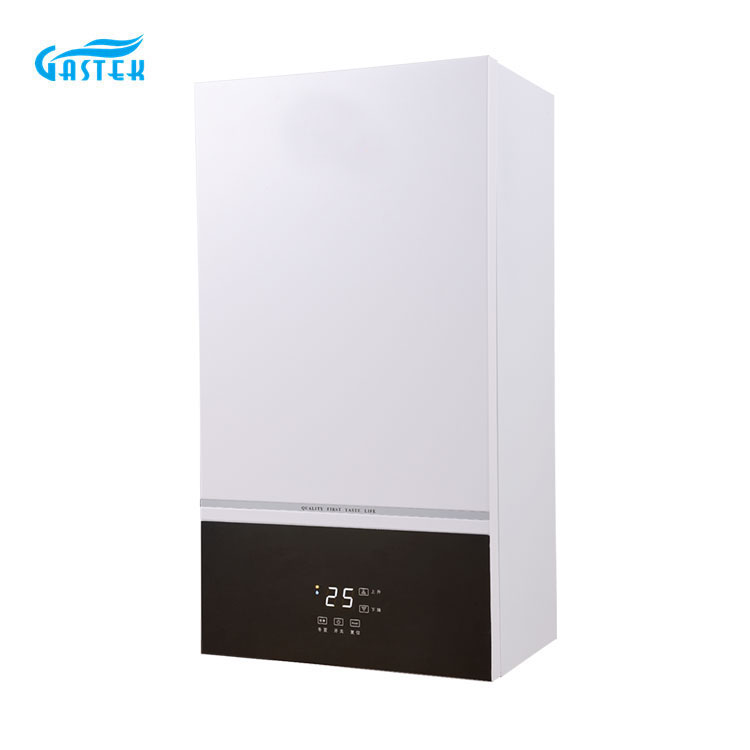

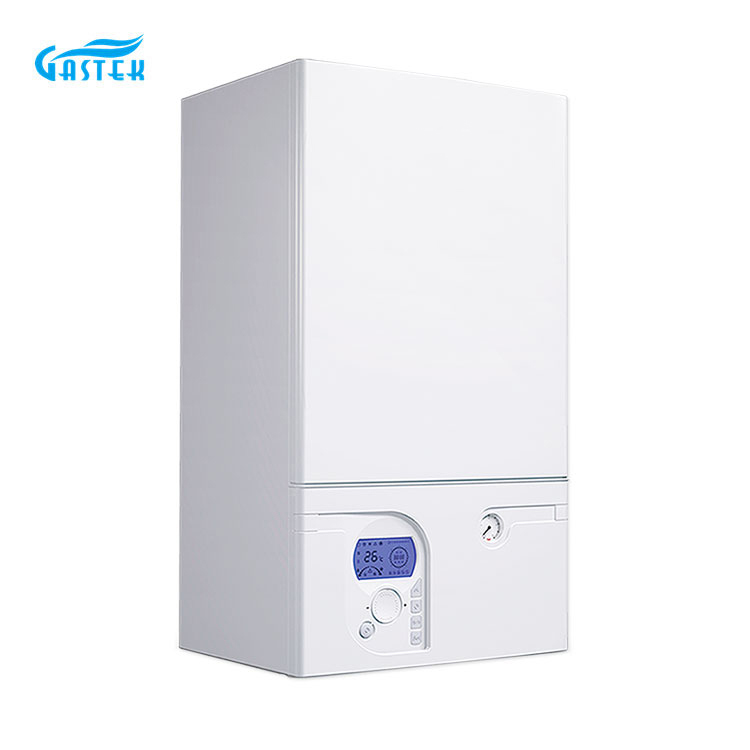

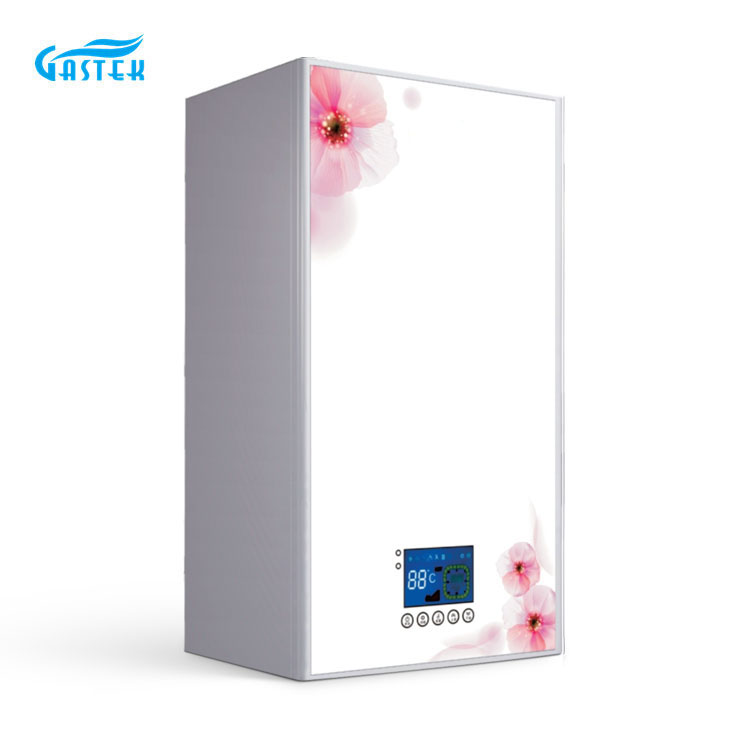

Common Gas Boiler Detailed Images

Common Gas Boiler

Common Gas Boiler Details

Model no		Unit	L1PB18	L1PB20	L1PB24	L1PB26	L1PB28	L1PB30	L1PB32	L1PB36	L1PB40
Gas type and pressure	LPG	Pa	2800
Gas type and pressure	NG	Pa	1300/2000
Rated Heat Input		kW	18	20	24	26	28	30	32	36	40
Efficiency at ratedheat power		%	≧99
Voltage			AC 220V，50Hz
Power consumption		W	105.0	105.0	110.0	110.0	118.0	118.0	118.0	210.0	210.0
Protection Class IPrating			IPX4D
Heating mode	Rated Heat Output	kW	16	17.9	21.4	23.2	25	26.7	28.5	32	35.6
	Minimum Heat Input	kW	6.3	6.8	8.4	9	9.6	10.5	11	12.6	14
	Minimum Heat Output	kW	5.4	5.8	7.1	7.7	8.2	8.9	9.4	10.7	11.9
	Heating temperature control range	℃	30~80(radiator);30~60(floor heating);
	Heating Area	m2	90.0	100.0	120.0	130.0	140.0	150.0	160.0	180.0	200.0
	Applied water pressure in heating mode	bar	0.5-3.0
	Preset Pressure of Expansion Tank	bar	1.0
DHW mode	Minimum Heat Input	kW	6.3	6.8	8.4	9	9.6	10.5	11	12.6	14
	Minimum Heat Output	kW	5.4	5.8	7.1	7.7	8.2	8.9	9.4	10.7	11.9
	DHW temperature control range	℃	35~60
	Rated hot water capacity(Δt=25K )	L	7.5	8.3	10.0	10.8	11.7	12.5	13.4	15.0	16.7
	Applied water pressure in DHW mode	bar	0.2-8
Expansion tank capacity		L	4.5		6.0					8.0
Pipe joint	Cold water inlet pipe	inch	G3/4
	Hot water outlet pipe	inch	G1/2
	Gas inlet pipe	inch	G3/4
	Air input/Exhaust Duct	mm	Φ60/Φ100
